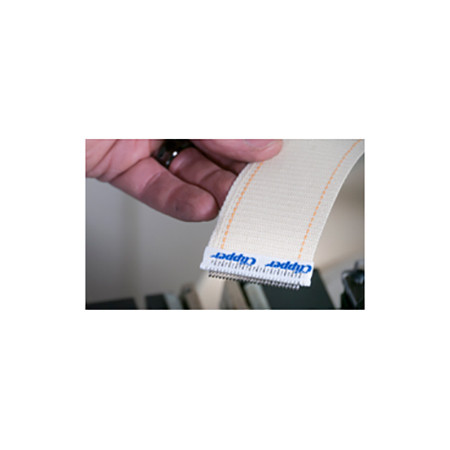

Anchor connector with textile patch

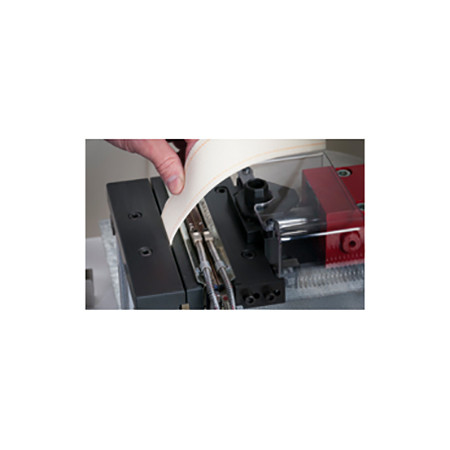

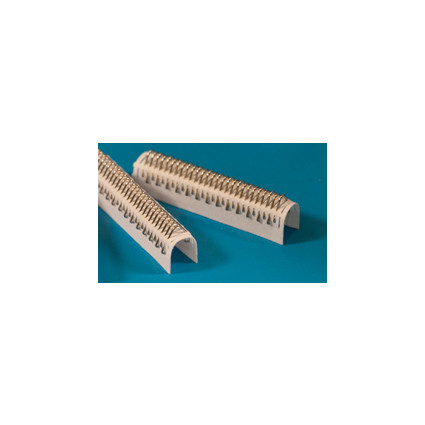

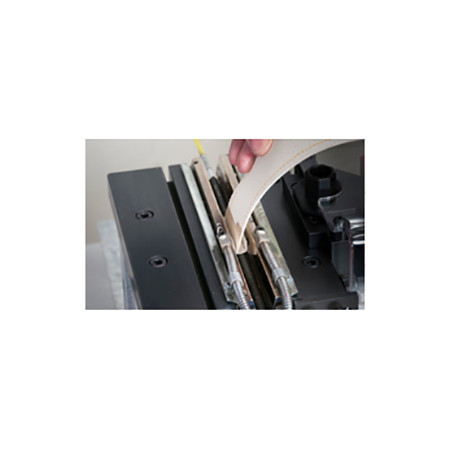

These belt connectors are suitable for many belt types and belt thicknesses up to approx. 2 mm. The individual hooks are held at six points on a cardboard strip, which can be easily cut to size. During transport and assembly, the strip first has the function of a spacer. When inserting the points into the strap, the strip guides the hooks. The strip is only removed after installation.

The Reimverbinder 25 series is ideally suited for use with very thin belts, e.g. on printing machines, in laundries and on machines with PTFE-coated belts.

Specifications:

• Wire diameter 0.62 mm.

• Pitch 1.70 mm

• Two by two measured

• For narrow tires from 10 to 115 mm.
  width

• Resp. 150 and 300 mm strip length

• Band thickness up to 2.8 mm

• From a roll diameter of 25 mm

• Horizontal cut ends, double flattened wire.
